Author Topic: Running lights on YZ250  (Read 1181 times)

0 Members and 1 Guest are viewing this topic.

Offline EVO450

  • Yama-Idol
  • *****
  • Posts: 840
Running lights on YZ250
« on: October 06, 2017, 08:52:12 PM »
Looking to run LED lights on my YZ250P 2002 model. Anyone done this mod?
2 wrongs don't make it right

Offline 4V5

  • MODERATOR
  • Yama-God
  • *****
  • Posts: 11210
Re: Running lights on YZ250
« Reply #1 on: October 06, 2017, 10:25:14 PM »
my YZ250WR has the lighting magnet added onto the flywheel with a coil in a spacer under the outer cover..

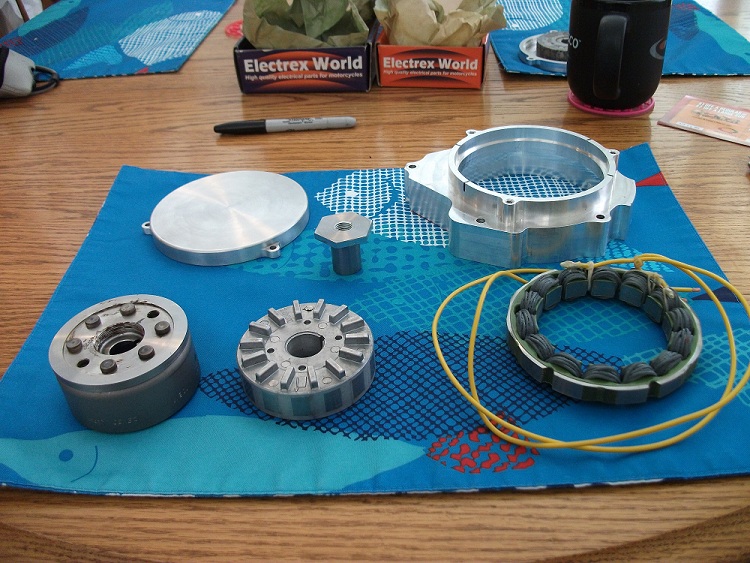

a google found pic is how it's setup:




mine was added when it was converted to "WR" when new, all of the "genuine" road gear is aftermarket of various descriptions.. I believe the brand of lighting is e-line but I can't be certain.

to be honest it's probably easier to run it total loss off a battery lol.
IT465x4 IT400C IT175F YZ465G YZ250C YZ250WR XJ650G RD350LC RD250LCx5 DT175Nx3 TW200x2 DT200L DT200R RT3 RX100G GT80F YZ80L PW50J KH250B1 KZ250D1 PE175C TS250ER TS185ER AG175B AG100

Offline Cooky375

  • Yama-Hero
  • ****
  • Posts: 372
Re: Running lights on YZ250
« Reply #2 on: October 08, 2017, 05:36:05 PM »
Yep my 01 250 has the same, I like the extra weight on the flywheel.

Offline Cooky375

  • Yama-Hero
  • ****
  • Posts: 372
Re: Running lights on YZ250
« Reply #3 on: October 08, 2017, 05:38:45 PM »
I have the original wiring diagram that came with the bike, if that's any help to you. Slightly worn now, it may not scan too good.

Offline EVO450

  • Yama-Idol
  • *****
  • Posts: 840
Re: Running lights on YZ250
« Reply #4 on: October 10, 2017, 09:13:34 PM »
Thanks Les, looks like a nice bit of kit.
Cooky does your YZ have this original Yamaha set up as well?
2 wrongs don't make it right

Offline Cooky375

  • Yama-Hero
  • ****
  • Posts: 372
Re: Running lights on YZ250
« Reply #5 on: October 11, 2017, 08:44:37 PM »
It sure does, 01 YZ250WR.

Offline enduras_wr200

  • Yama-God
  • ******
  • Posts: 1797
  • Heavy Metal is the Law!
Re: Running lights on YZ250
« Reply #6 on: October 20, 2017, 05:40:57 AM »
   Hi there EVO there is a ready to install solution, have you checked this?
 http://www.rickystator.com/product/stators/item/yamaha-yz250-35-watt-lighting-stator-assembly-99-on?
