Author Topic: IT400E  (Read 3738 times)

0 Members and 1 Guest are viewing this topic.

Offline Tony H

  • Yama-Hero
  • ****
  • Posts: 268
IT400E
« on: November 25, 2014, 06:01:53 PM »
The Yz125h resto has been bumped back for this It400.  It's been sitting for a while, however most parts are there.  I have been well and truly bitten by the IT bug (obsession)-



Motors coming out this weekend and hope to have the frame blasted the following week.


cheers Tony

Offline 2fITy.J

  • Yama-God
  • ******
  • Posts: 16066
  • To get ahead, it's one down, five up!
Re: IT400E
« Reply #1 on: November 25, 2014, 06:26:39 PM »
Great descriptive vid Tony....and I'm glad you have this so called bug too.  :D

Good luck with the old girl....another IT saved.  8)


Cheers,
Chris.
A bike in the bush is worth two in the shed!

BMW-BSA-Ducati-Honda-Kawasaki-Lambretta-Matchless-Norton-Suzuki-Triumph-Vespa-Yamaha.

Dirty Dozen '13 DR650SE - '90 DR650RS - '82 IT465J - '82 IT250J - '80 GT80G - '77 A100B - '76 DT100C - '76 TC125 - '75 TM75 - '73 MX80 -       '73 TC100K - '69 TC120-1

Offline Martin I Henry

  • MODERATOR
  • Yama-God
  • *****
  • Posts: 9886
  • Europe
    • Dave's Bikes
Re: IT400E
« Reply #2 on: November 26, 2014, 07:32:35 AM »
Looks like an interesting project !

Another old IT saved.

Cheers,

Dave R.

Offline mboddy

  • Yama-God
  • ******
  • Posts: 1459
    • Vinduro Penrite Team
Re: IT400E
« Reply #3 on: November 26, 2014, 07:49:25 AM »
Need to add your bike to the IT model count thread.
You have our first IT400E.
http://www.yamahait.com.au/forum/index.php/topic,10901.160.html
Vinduro Penrite Team
1980 IT125G, 1979 IT175F, 1984 IT200L, 1977 IT250D and IT400D

Offline EVO450

  • Yama-Idol
  • *****
  • Posts: 840
Re: IT400E
« Reply #4 on: November 26, 2014, 01:26:25 PM »
Good pick up Tony, have fun with the resto ;)
2 wrongs don't make it right

Offline sluggish7

  • Yama-Idol
  • *****
  • Posts: 803
Re: IT400E
« Reply #5 on: November 26, 2014, 05:29:20 PM »
well done Tony  ;)
I am back early January. I will give you the head light then.
Simon
1x IT 400,worn out now
1x IT 200
3x IT 250 Various
1x Gas Gas 200 excellent
1x GS650 project
1x IT 125
1x It 465 working on it
1 x IT 175
And a sh_t load of bits

Offline Martin I Henry

  • MODERATOR
  • Yama-God
  • *****
  • Posts: 9886
  • Europe
    • Dave's Bikes
Re: IT400E
« Reply #6 on: November 27, 2014, 07:38:26 AM »
Quote
You have our first IT400E.

Well spotted Mark.

That just leaves the IT250E as the unloved IT model !

Cheers,

Dave R.

Offline ty4

  • Yama-God
  • ******
  • Posts: 1652
Re: IT400E
« Reply #7 on: November 27, 2014, 02:57:13 PM »
Well spotted Mark.

That just leaves the IT250E as the unloved IT model !

Cheers,

Dave R.

i Had one for about 5 minutes does that count?



cheers

tony

Offline Martin I Henry

  • MODERATOR
  • Yama-God
  • *****
  • Posts: 9886
  • Europe
    • Dave's Bikes
Re: IT400E
« Reply #8 on: November 28, 2014, 07:55:48 AM »

Quote
i Had one for about 5 minutes does that count?

Ha ha ! Not really.

Nice seat cover !

Cheers,

Dave R.

Offline sluggish7

  • Yama-Idol
  • *****
  • Posts: 803
Re: IT400E
« Reply #9 on: November 28, 2014, 09:19:06 PM »
My bikes: :)
IT 250 J
IT400 E yes!
IT125 white guards
IT 250k x 3
Gas gas 200 and 300,Mmmmh !
GS650
Bismark 70
Postie bike
KDX 200
Plus others !Merry Christmas Off now!
1x IT 400,worn out now
1x IT 200
3x IT 250 Various
1x Gas Gas 200 excellent
1x GS650 project
1x IT 125
1x It 465 working on it
1 x IT 175
And a sh_t load of bits

Offline Tony H

  • Yama-Hero
  • ****
  • Posts: 268
Re: IT400E
« Reply #10 on: December 03, 2014, 07:23:26 PM »
The rebuild begins.

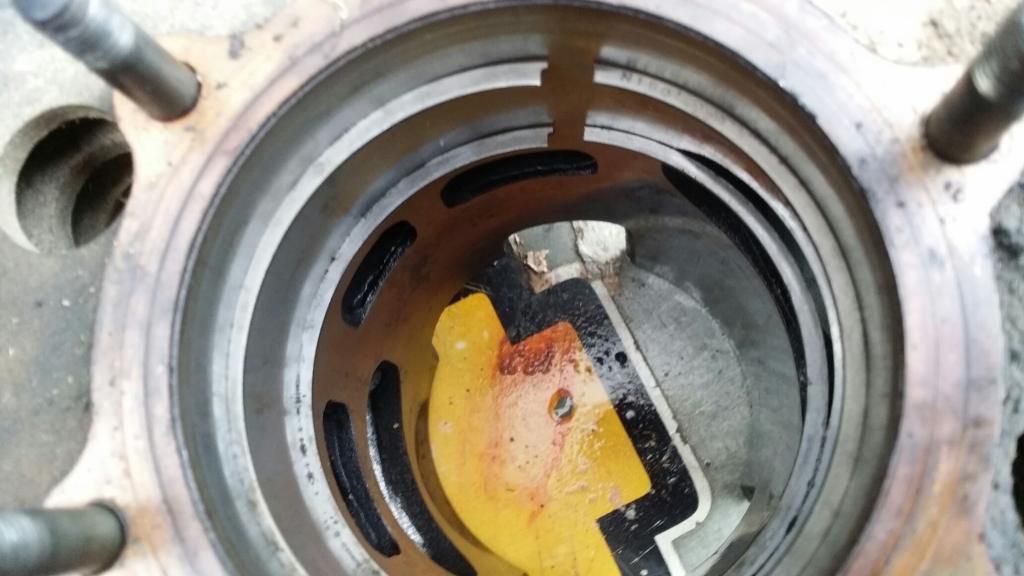

Check the ring gap. Keep in mind this old girl ran.



Its on its 2nd oversize, so its out to .75-1 o/s. My plan is to run this 400 in the amtra/suzuki high country ride next year.
Things to do (heaps)-
1. Rebore, piston & rings
2. Gaskets
3. Repair exhaust
4. Paint frame, motor, swingarm..........
5. Relace rear wheel (broken spokes)
6. Headlight  - thanks Simon
7. IT400 forks and wheel (has RM? Forks)
8. Tyres (in stock)
9. Seat reupholstered
10. Swingarm and headstem bearings
11. Historic reg
and all the things I have forgotten.

cheers Tony

Offline 2fITy.J

  • Yama-God
  • ******
  • Posts: 16066
  • To get ahead, it's one down, five up!
Re: IT400E
« Reply #11 on: December 03, 2014, 09:12:52 PM »
Check the ring gap. Keep in mind this old girl ran.


So....she was down on compression a tad.... :D :D :D

That's THE most I've ever seen!

Good Luck Tony, I'm sure it'll be great ride in your hands.  8)



Cheers,
Chris.
A bike in the bush is worth two in the shed!

BMW-BSA-Ducati-Honda-Kawasaki-Lambretta-Matchless-Norton-Suzuki-Triumph-Vespa-Yamaha.

Dirty Dozen '13 DR650SE - '90 DR650RS - '82 IT465J - '82 IT250J - '80 GT80G - '77 A100B - '76 DT100C - '76 TC125 - '75 TM75 - '73 MX80 -       '73 TC100K - '69 TC120-1

Offline Jock

  • Owner
  • Yama-God
  • *****
  • Posts: 9907
    • Vinduro
Re: IT400E
« Reply #12 on: December 04, 2014, 10:50:20 PM »

Check the ring gap. Keep in mind this old girl ran.


It's a Yamaha 2-Stroke.

They always run.

Maybe not well, but they run!

Cheers

Jock

Offline Tony H

  • Yama-Hero
  • ****
  • Posts: 268
Re: IT400E
« Reply #13 on: December 22, 2014, 09:12:19 PM »
You find all sorts of dodgy surprises during resto's. Not the first bike I've had with the swingarm bushed-



All Balls make a kit for the IT400F : 28-1185. Has anyone use this kit on a 400D or E?

The pipe has seen better days-




However salvageable until I find something better


The journey continues.....

Offline EVO450

  • Yama-Idol
  • *****
  • Posts: 840
Re: IT400E
« Reply #14 on: December 23, 2014, 08:27:33 AM »
One of theses would make for a nice look and performance Tony

http://dgperformance.com/dg-performance-models.php?category=Yamaha&model=IT400F&appYear=1979
2 wrongs don't make it right

Offline Tony H

  • Yama-Hero
  • ****
  • Posts: 268
Re: IT400E
« Reply #15 on: December 24, 2014, 04:22:11 PM »
That's a nice pipe Evo, may have to put aside a few more pennies.

I found a few more challenges with the swingarm. Someone got excited with a welder-




Grind, drill and pin



Dodgy pillion pegs removed and frame cleaned up for painting



My piston is on its way from the US, probably the wrong time of year for shipping. Plenty to do whilst waiting.

Everyone have a great christmas.
cheers Tony





Offline Darrend

  • Yama-Rookie
  • **
  • Posts: 85
Re: IT400E
« Reply #16 on: December 25, 2014, 08:12:22 AM »
Hi Tony

Your pipe is in excellent condition compared to mine.

Merry Christmas

Darren

Offline EVO450

  • Yama-Idol
  • *****
  • Posts: 840
Re: IT400E
« Reply #17 on: December 25, 2014, 01:55:44 PM »
Lots to do on the frame Tony, I can sympathise with you here I'm going through similar frustrations. I just get annoyed at some peoples attempts to FIX frame damage/modifications...........f@cking dick heads  >:(
2 wrongs don't make it right

Offline Tony H

  • Yama-Hero
  • ****
  • Posts: 268
Re: IT400E
« Reply #18 on: December 29, 2014, 05:59:56 PM »
Another fine piece of workmanship -



at least the kickstart isn't welded.

Offline Darrend

  • Yama-Rookie
  • **
  • Posts: 85
Re: IT400E
« Reply #19 on: December 29, 2014, 06:04:50 PM »
Hi Tony

At least you know it won't come off in a hurry!!

Offline 2fITy.J

  • Yama-God
  • ******
  • Posts: 16066
  • To get ahead, it's one down, five up!
Re: IT400E
« Reply #20 on: December 29, 2014, 06:08:10 PM »
Another fine piece of workmanship -


That'll make up for the gap in the rings...... :D :D





I had a kicker that was welded on an MX80........ ::)










I ground it back and all was good..... 8)








Leslie's the exponent of fixing gear levers...experience wise.  ;D





Cheers,
Chris.
A bike in the bush is worth two in the shed!

BMW-BSA-Ducati-Honda-Kawasaki-Lambretta-Matchless-Norton-Suzuki-Triumph-Vespa-Yamaha.

Dirty Dozen '13 DR650SE - '90 DR650RS - '82 IT465J - '82 IT250J - '80 GT80G - '77 A100B - '76 DT100C - '76 TC125 - '75 TM75 - '73 MX80 -       '73 TC100K - '69 TC120-1

Offline Zrt1200

  • Yama-God
  • ******
  • Posts: 1279
Re: IT400E
« Reply #21 on: December 30, 2014, 01:25:12 AM »
You defiantly have your work cut out on this bike. It will pay off in the end but it can be very frustrating in the mean time. I have never seen rings like that before. It almost looks like they filed the one side off before installing them. I hate cobble jobs and worse weld where it should not be. Keep at it and you will get it right. Great work so far.

AL

Current bikes, (82) IT465J, (85) IT200N, (05) GasGas 200, (11) DRZ400S, More photos can be found at.....

http://s582.photobucket.com/user/Zrt1107/library/dirt%20bikes?sort=3&page=1

Offline Tony H

  • Yama-Hero
  • ****
  • Posts: 268
Re: IT400E
« Reply #22 on: February 22, 2019, 05:23:44 PM »
Time to resurrect an old thread. With other bikes to ride some projects get relegated to the back of the shed.
Well it's time to get motivated again with a pre 80 class in the australian 3 day vinduro in May.
Motor is reassembled and ready to go back in the frame, however I have an issue with the forks. This bike has had its triples bored out to fit a RM 38mm front end (1980-81).
The bike must be period correct.
Does anyone in oz have a 36mm stock frontend or preferably a 38mm 77-79 YZ forks etc?


Offline T.RexRacing

  • Yama-Hero
  • ****
  • Posts: 365
Re: IT400E
« Reply #23 on: February 23, 2019, 12:14:04 AM »
I have a set of '80 YZ465 forks/triples if that will work. I'm willing to ship but the cost may be prohibitive.
Whatever you do will be insignificant, but it is very important that you do it.
- Mahatma Gandhi

Offline Martin I Henry

  • MODERATOR
  • Yama-God
  • *****
  • Posts: 9886
  • Europe
    • Dave's Bikes
Re: IT400E
« Reply #24 on: February 23, 2019, 06:44:52 AM »

The IT175J and K yokes use the same casting as the early 36mm items. I expect Yamaha saw how much meat there was and thought 'we'll just hog them out to 38mm'!

I'd try and avoid any forks that are too long such as the IT250H/J as your bike will steer like a Harley!

I think Mark uses 38mm forks on one or more of his creations.

Cheers,

Dave.


Offline mboddy

  • Yama-God
  • ******
  • Posts: 1459
    • Vinduro Penrite Team
Re: IT400E
« Reply #25 on: February 23, 2019, 08:52:26 AM »
I think Mark uses 38mm forks on one or more of his creations.

Yes. On the IT175F I had been using YZ250D forks. But these are rare due to being in demand by VMX Pre-78. Best to avoid if you are not doing Pre-78.
I had some issues with them due to wear and so I got some YZ250F forks and used my good YZ250D tubes and fiddled a bit to get the travel about the same as the YZ250D forks.

For my 400E 'Hopetown Vinduro' bike I will be using YZ250F forks. I will push the tubes through the triple clamps as far as I can without limiting travel.
It will be a slow steering bike but I am ok with that as it will be setup for fast open events.
Vinduro Penrite Team
1980 IT125G, 1979 IT175F, 1984 IT200L, 1977 IT250D and IT400D

Offline sluggish7

  • Yama-Idol
  • *****
  • Posts: 803
Re: IT400E
« Reply #26 on: February 23, 2019, 07:51:44 PM »
Hi Tony
Is that my old bike ?
I picked it up out of a paddock somewhere north of Melbourne from vague memory !
I think i have some forks, rear shock for it and various other parts
Give me a call 0408 109 120
Thanks Simon
1x IT 400,worn out now
1x IT 200
3x IT 250 Various
1x Gas Gas 200 excellent
1x GS650 project
1x IT 125
1x It 465 working on it
1 x IT 175
And a sh_t load of bits

Offline Tony H

  • Yama-Hero
  • ****
  • Posts: 268
Re: IT400E
« Reply #27 on: May 25, 2019, 02:25:12 PM »
After many years the 400 is complete and made it to the Australian 3 day vintage enduro in V2 class (pre 80).

Passed scrutineering and sound check.
It required a working headlight, horn, tail and brakelight.

Offline Tony H

  • Yama-Hero
  • ****
  • Posts: 268
Re: IT400E
« Reply #28 on: May 25, 2019, 02:28:10 PM »
The conditions were treacherous in spots, however the IT stayed upright and tractored through the snottiest terrain


Offline Tony H

  • Yama-Hero
  • ****
  • Posts: 268
Re: IT400E
« Reply #29 on: May 25, 2019, 02:39:00 PM »
Alas, a fairy story was not to be.
I made the first loop in ample time and had a blast on the special test. Loop 2 was disastrous. I lost all gears after negotiating a steep clay hill decorated with a couple of other competitors.
After some fiddling I managed to engage 2nd and managed another 30km before the old girl gave up the ghost.
Full credit to the A3VE recovery team, they had me out in about 2 hours after I called and special thanks to the boys from Yarram club who helped push the bike out of the single track.







I had a blast and there's always next year.
cheers Tony

Offline harko

  • Yama-God
  • ******
  • Posts: 1376
Re: IT400E
« Reply #30 on: May 25, 2019, 06:56:49 PM »
Nice one Tony, might be a bit of a godsend being out. It is pissing down down here in Vic so can only assume it will be treacherous out there.

Maybe all Vic It riders can look into this event. ;D

Harko
Harko

Offline Tony H

  • Yama-Hero
  • ****
  • Posts: 268
Re: IT400E
« Reply #31 on: May 26, 2019, 08:34:18 PM »
Thanks Ty4 for the triples, no issues from the scrutineers with the 36mm forks. I was anxious about the noise test, however it passed.
........and Sluggish - the old girl was a great base to save.
Just a week before the race - damn, I need an air filter. I called a number of bike shops to no avail. So I emailed twin air in NSW. None in stock, however they could make the filters in 1-2 days. 2 days later I had 2 filters delivered - great customer service.
The 400 requires a new selector shaft and then will be back in action.

cheers Tony



Offline mboddy

  • Yama-God
  • ******
  • Posts: 1459
    • Vinduro Penrite Team
Re: IT400E
« Reply #32 on: May 28, 2019, 09:19:22 AM »
I hope you will be running it at next years A3VE.
Phil Green did very well on his, taking 1st in class and 7th outright.
My plan is to build my 400E for next years event.
A 3 way contest between us on our 400s would be great!  :)
Vinduro Penrite Team
1980 IT125G, 1979 IT175F, 1984 IT200L, 1977 IT250D and IT400D

Offline Tony H

  • Yama-Hero
  • ****
  • Posts: 268
Re: IT400E
« Reply #33 on: May 28, 2019, 05:00:08 PM »
I'll definitely be back next year Mark and it would be a grin having the 400's dicing.
Phil flew past me on the special test, he had that bike singing.
Harko it would be great to see more IT members next year at this event. The tracks aren't that hard (a bit slippery) and there's always the noncompetitive rally.
